Winch Motors
BTMS1210
12V · 2200W · 8 N·m · IP67
The BTMS1210 is a 12 V, 2200 W bi-directional DC winch motor built for high starting torque and reliable pulls. With 8 N·m rated torque, S2 2 min · S3 7%ED duty, Class F insulation and IP67 protection, it powers electric recovery winches, utility winches and marine applications.
| Rated voltage | 12 V |
|---|---|
| Power | 2200 W |
| Rated current | ≤285 A |
| Rated torque | 8 N·m |
| Duty cycle (S2 · S3) | S2 2 min · S3 7%ED |
| Insulation class | Class F |
| Protection rating | IP67 |
| Shaft teeth | 20 |
| Rotation | Bi-directional |
| Weight | 9.5 kg |
Typical applications
- Electric recovery winches
- Off-road vehicle winches
- Utility & trailer winches
- Marine winches

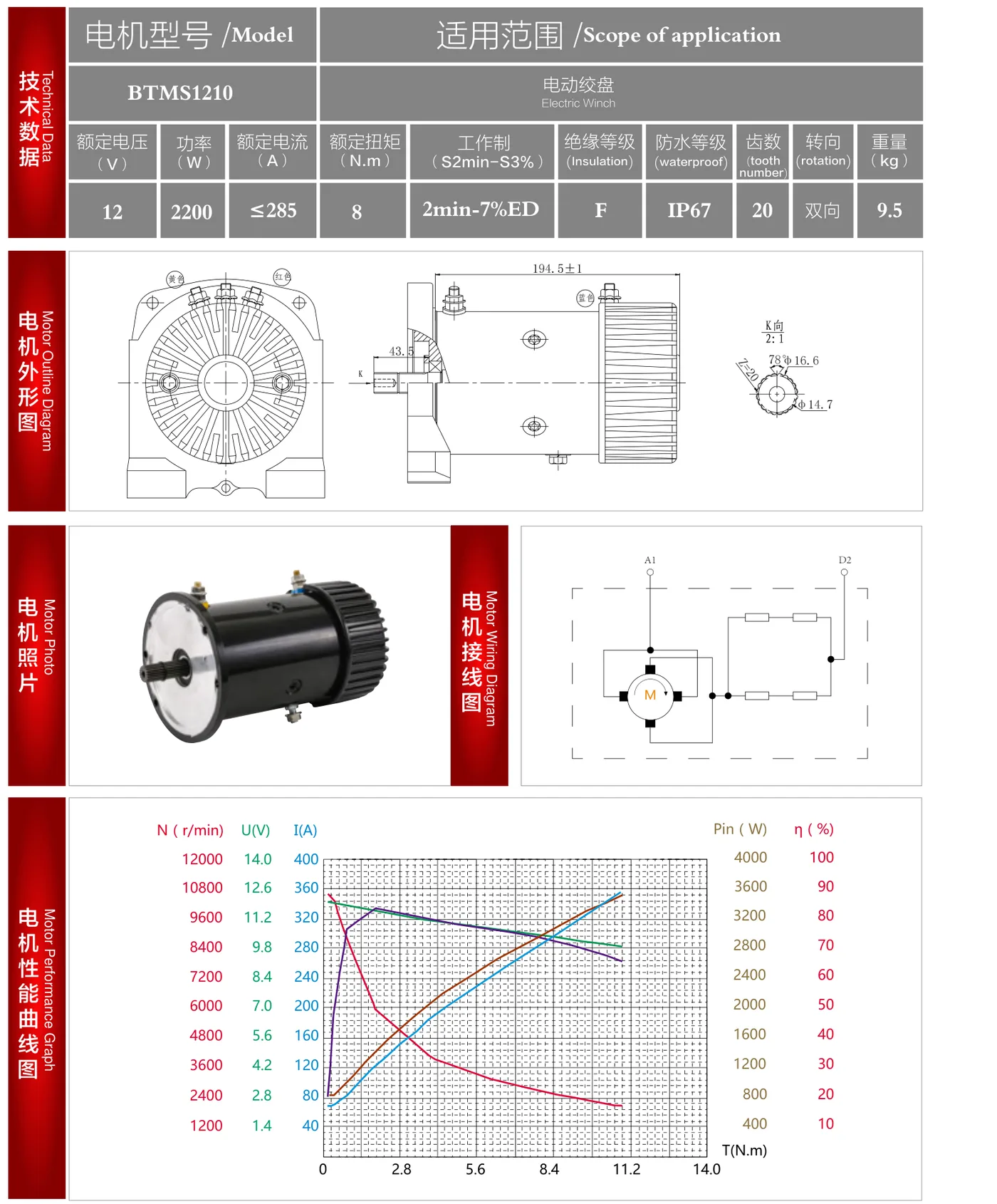

Full catalog datasheet — dimensions, wiring & performance curve
Need a dimensioned STEP file or custom shaft/mount? Ask our engineers.
