Hydraulic Power Unit Motors
BT40LT-24V
24V · 4200W · 14 N·m · Open
The BT40LT-24V is a 24 V, 4200 W permanent-magnet DC motor engineered for hydraulic power units and oil pump drives. It delivers 14 N·m rated torque with a S2 13 min · S3 28%ED duty cycle, Class F insulation and Open protection — a proven drive for tail lifts, lifting machines, aerial platforms and special-purpose vehicles.
| Rated voltage | 24 V |
|---|---|
| Power | 4200 W |
| Rated current | ≤220 A |
| Rated torque | 14 N·m |
| Duty cycle (S2 · S3) | S2 13 min · S3 28%ED |
| Insulation class | Class F |
| Protection rating | Open |
| Shaft teeth | 9 |
| Rotation | CW |
| Weight | 15 kg |
Typical applications
- Hydraulic power units
- Tail lifts
- Lifting machines
- Aerial work platforms
- Special-purpose vehicles

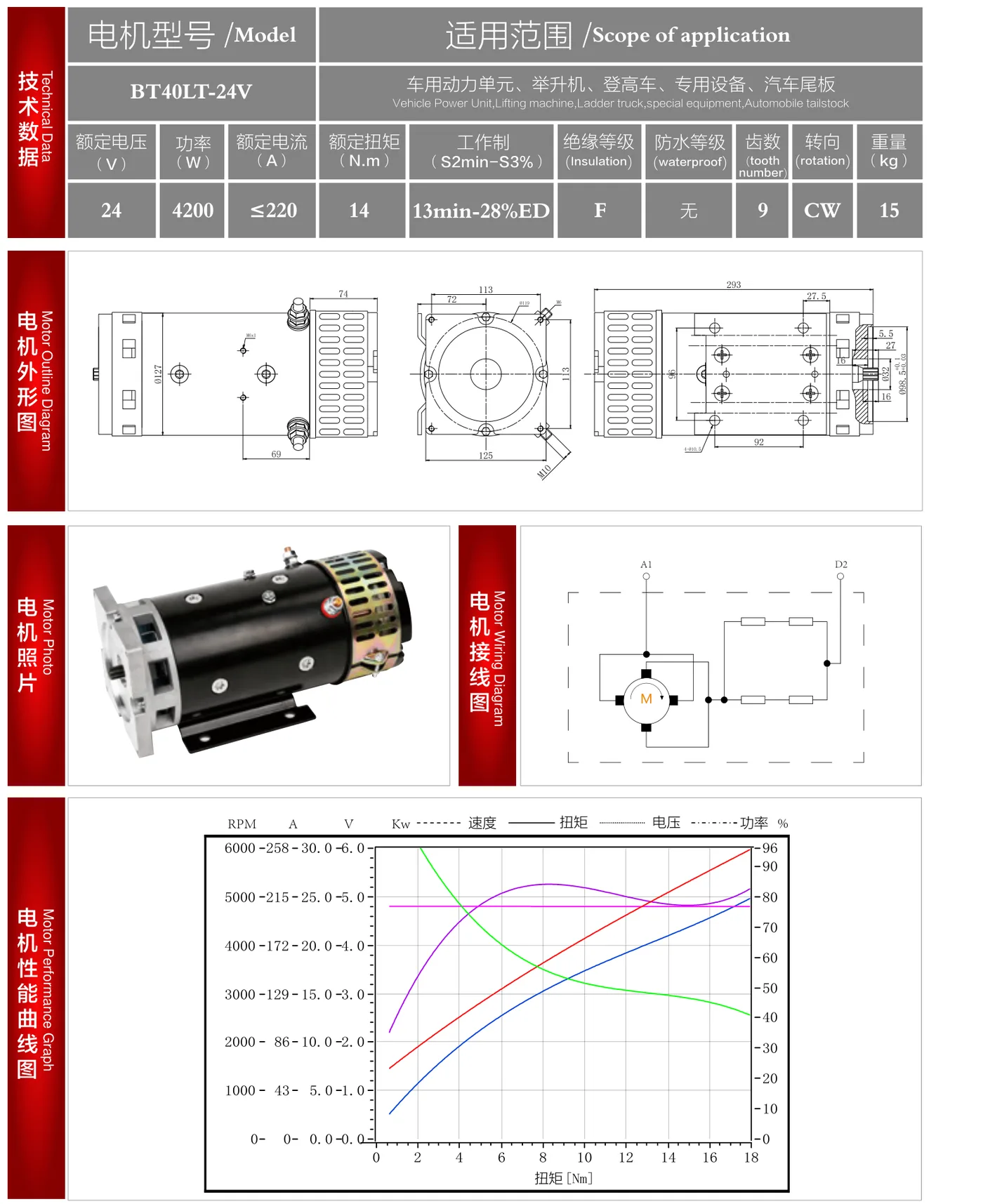

Full catalog datasheet — dimensions, wiring & performance curve
Need a dimensioned STEP file or custom shaft/mount? Ask our engineers.
