Hydraulic Power Unit Motors
BT22WB-12V
12V · 2200W · 8 N·m · IP54
The BT22WB-12V is a 12 V, 2200 W permanent-magnet DC motor engineered for hydraulic power units and oil pump drives. It delivers 8 N·m rated torque with a S2 2.5 min · S3 9%ED duty cycle, Class F insulation and IP54 protection — a proven drive for tail lifts, lifting machines, aerial platforms and special-purpose vehicles.
| Rated voltage | 12 V |
|---|---|
| Power | 2200 W |
| Rated current | ≤250 A |
| Rated torque | 8 N·m |
| Duty cycle (S2 · S3) | S2 2.5 min · S3 9%ED |
| Insulation class | Class F |
| Protection rating | IP54 |
| Shaft teeth | 2 |
| Rotation | CW |
| Weight | 8.4 kg |
Typical applications
- Hydraulic power units
- Tail lifts
- Lifting machines
- Aerial work platforms
- Special-purpose vehicles

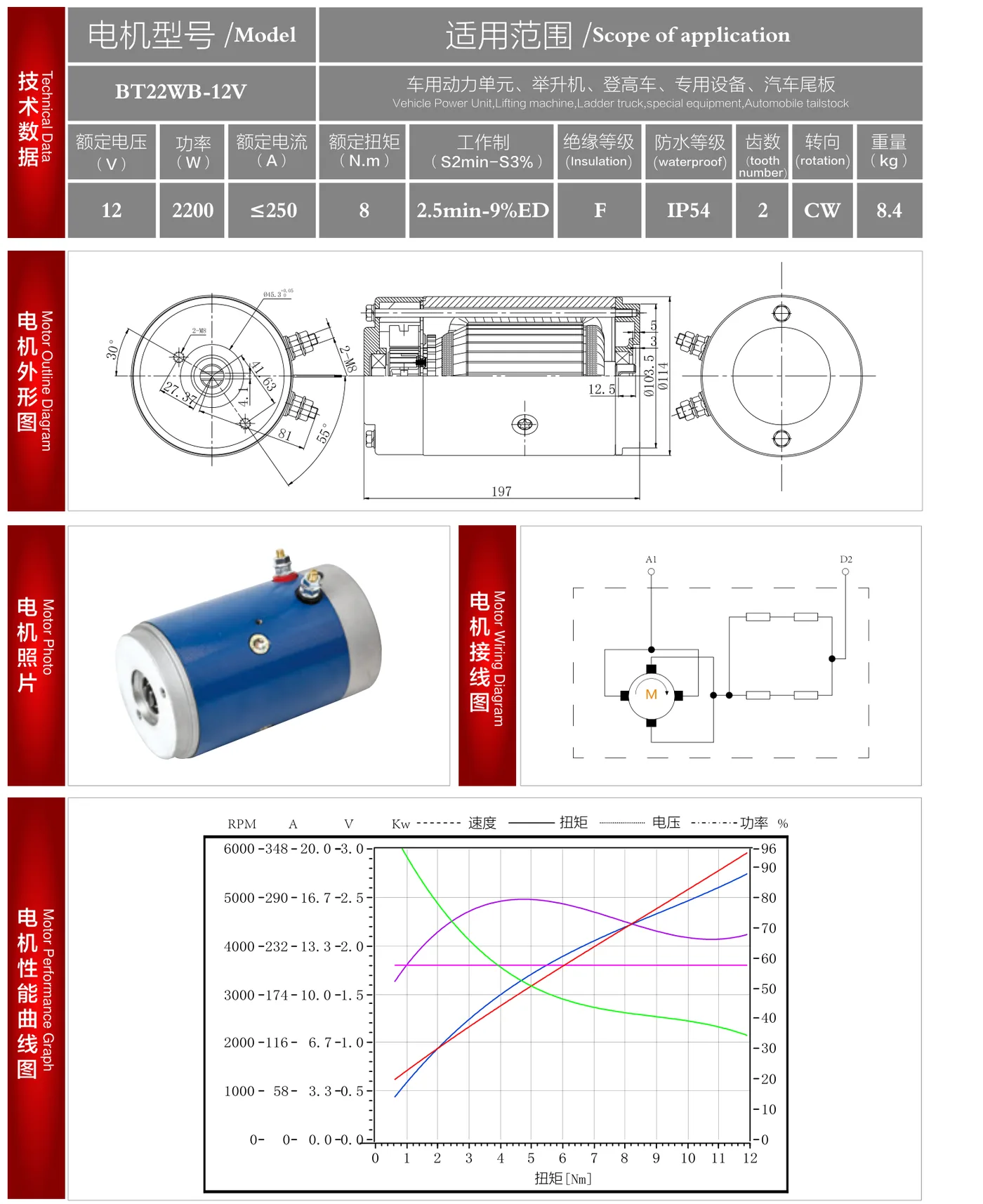

Full catalog datasheet — dimensions, wiring & performance curve
Need a dimensioned STEP file or custom shaft/mount? Ask our engineers.
