Tarpaulin Motors
BT09ZX-24V
24V · 700W · 4 N·m · IP67
The BT09ZX-24V is a 24 V, 700 W waterproof DC gear motor for truck tarpaulin systems, rated IP67 for open-road exposure. It provides 4 N·m rated torque with a S2 3 min · S3 30%ED duty cycle and Class F insulation, and pairs with a 40:1 reduction gearbox and controller supplied by Bonte.
| Rated voltage | 24 V |
|---|---|
| Power | 700 W |
| Rated current | 45 A |
| Rated torque | 4 N·m |
| Duty cycle (S2 · S3) | S2 3 min · S3 30%ED |
| Insulation class | Class F |
| Protection rating | IP67 |
| Shaft teeth | 1 |
| Rotation | CW |
| Weight | 7.5 kg |
Typical applications
- Truck tarpaulin systems
- Trailer roll-over covers
- Agricultural transport covers

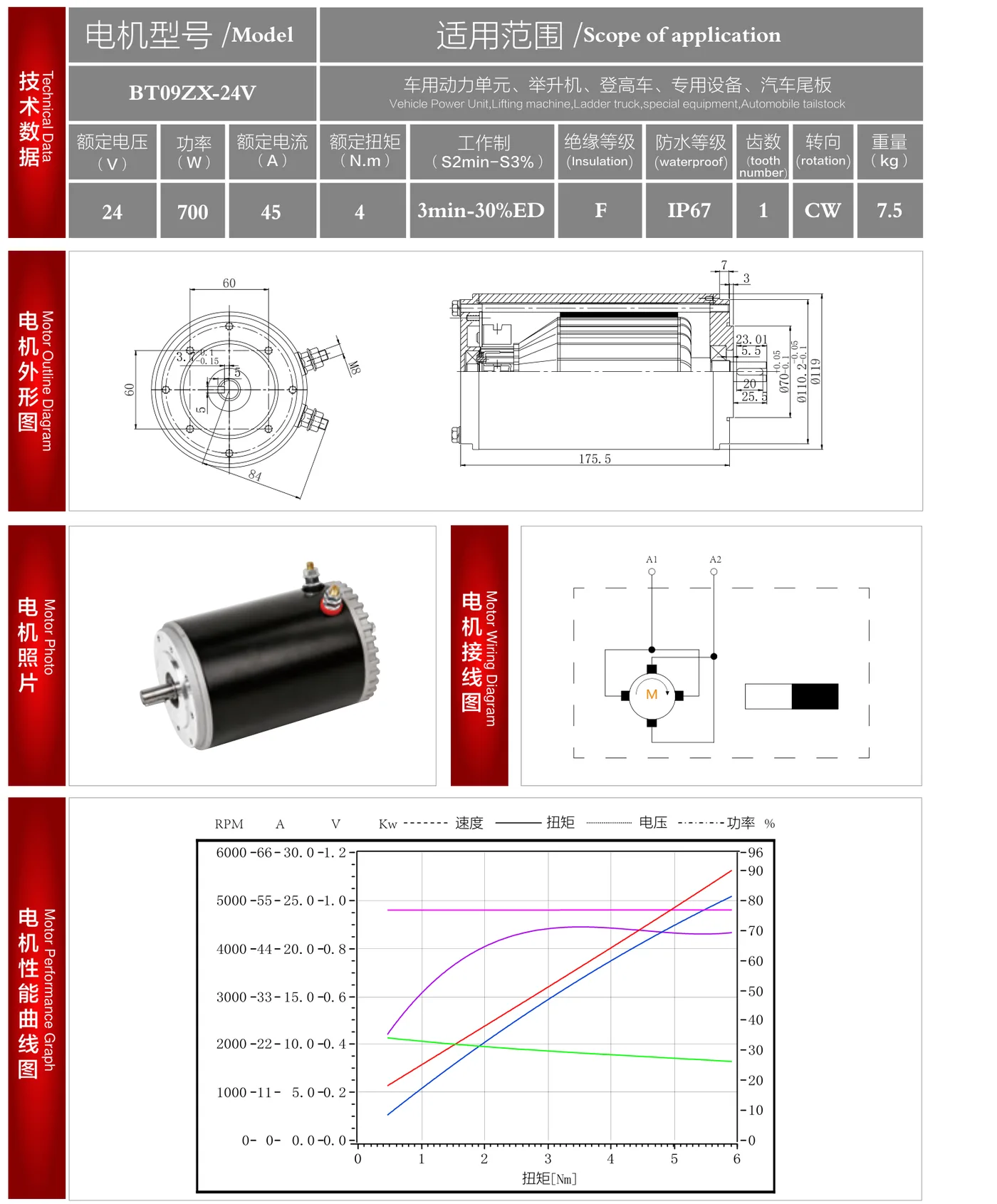

Full catalog datasheet — dimensions, wiring & performance curve
Need a dimensioned STEP file or custom shaft/mount? Ask our engineers.
